● Car DVR
● Car RearView Mirror
● Car Tracker
● LBS (Location Based Service)
● PND (Portable Navigation Device)
● Computer
● Outdoor Equipment
● Handheld GPS Device. ect.
|
Product Details:
|

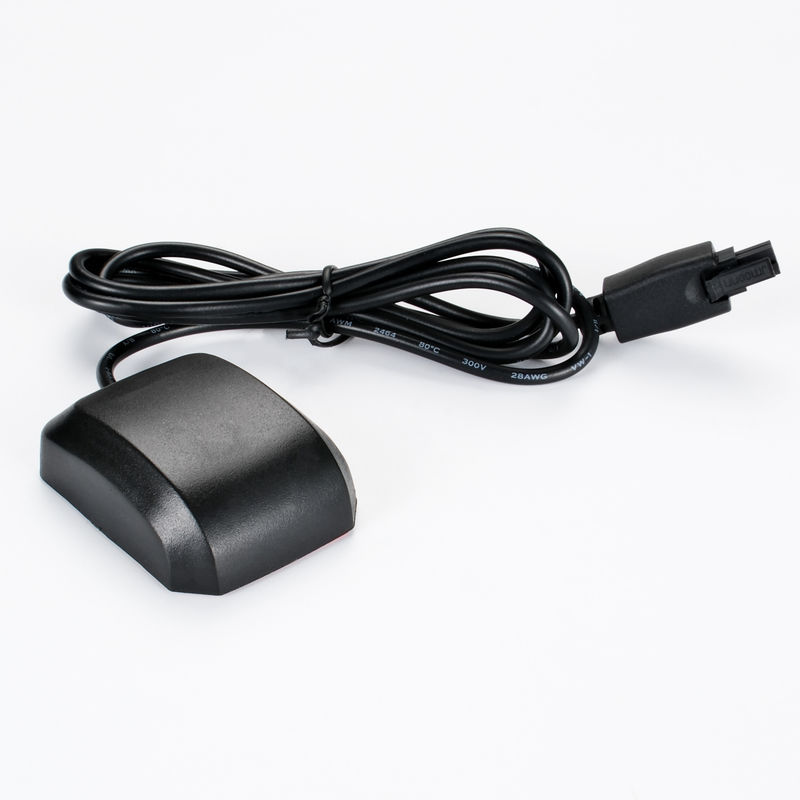

| Model Number: | WT-2828-AK-R232-M-2M | Application: | Positioning, Surveying And Mapping, Etc |
|---|---|---|---|
| Country Of Origin: | CHINA | Operating Mode: | GPS+GLONASS+GALILEO+ BDS |
| Baud Rate: | 4800bps-921600bps,Default9600bps | Update Frequency: | 1Hz-10Hz(default 1Hz) |
| Size: | 38mm*49mm*16mm | Wire Length: | 2M |
| Highlight: | Molex Connector GPS Receiver Antenna,G-Mouse GPS Receiver Antenna,R232 Vehicle Navigation GPS Receiver Antenna |
||
Product descriptions from the supplier
| Product performance | |
| Chip | WT-2828-AK-R232-M-2M |
| Receiver type |
GPS/QZSS L1 |
| Agreement | NMEA-0183 compliant protocol or custom protocol |
| NMEA messages | RMC,VTG,GGA,GSA,GSV,GLL |
| Available baud rate | 4800bps~921600bps(default 9600bps) |
| Channel | 56 |
| Sensitivity | Tracking: -162dbm Capture: -148dbm Cold start -148dbm |
| Cold start | Average 29seconds |
| Hot start | Average 1 seconds |
| Accuracy | Horizontal accuracy 2.5m CEP,
Velocity: 0.1 m/s
Timepulse signal: RMS 30 ns |
| 18Max Height | 18000 M |
| Max Speed | 500 m/s |
| Max Acceleration | ≦ 4G |
| Regeneration frequency | 1Hz -10 Hz |
| Positioning mode | A-GNSS |
| Communication type | R232 level |
| Antenna | Built-in ceramic antenna |
| Connector | |
| Connector type |
Molex connector |
| Physical property | |
| Type | 4 Pin |
| Size | 38mm*49mm*16mm (+/- 0.5mm) |
| Wire length | 2m (customizable) |
| Fixed mode | 3M adhesive or magnet (default 3M adhesive) |
| Power supply | |
| Voltage | 3V~5V |
| Power Consume |
25mA@3.3V |
| Oerating Environment | |
| Humidity range | 5% to 95% non-condensing |
| Working Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
