Product Details:
|
| Application: | Positioning, Surveying And Mapping, Etc | Type: | GNSS Receiver |
|---|---|---|---|
| Output Mode: | TTL | Baud Rate: | 4800bps-921600bps,Default9600bps |
| Update Frequency: | 1Hz-18Hz(default 1Hz) | Power Consumption: | 35 MA @3.3V |
| Wire Length: | 3M | Connector Type: | Molex Connector |
| Highlight: | UBLOX-M8030 TTL GPS Receiver Antenna,TTL GPS Receiver Antenna G Mouse,Molex Connector TTL GPS Receiver Antenna |
||

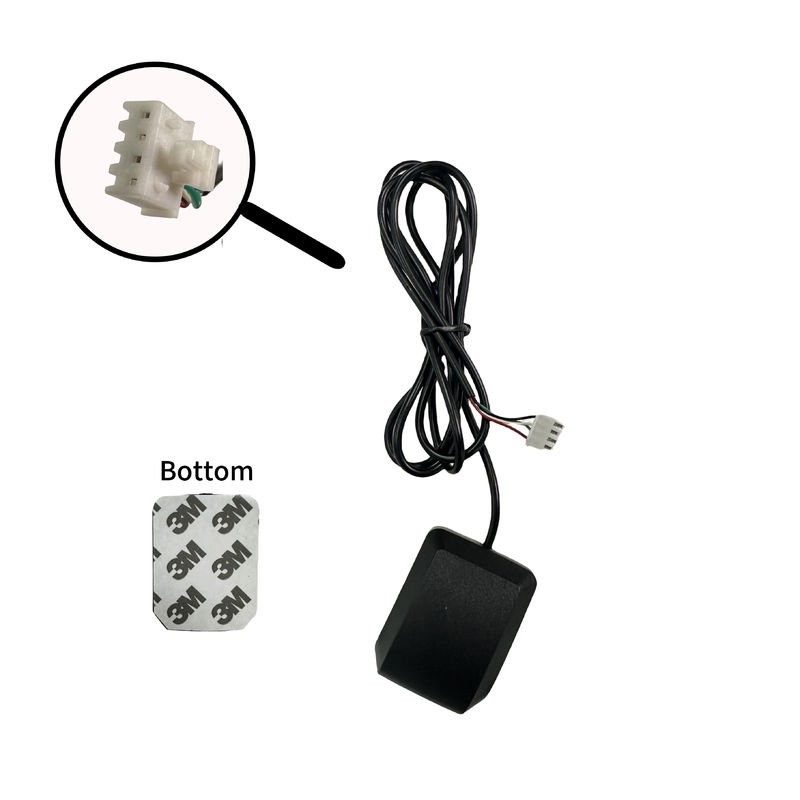

Molex Connector UBLOX-M8030 TTL GPS Receiver Antenna G Mouse For CAR DVR
Product descriptions from the supplier
| Product performance | |
| Model | WT-2828-UN-TTL-M-3M |
| Chip | UBLOX-M8030 |
| Receiver type |
GPS/QZSS L1 |
| Agreement | NMEA-0183 compliant protocol or custom protocol |
| NMEA messages | RMC,VTG,GGA,GSA,GSV,GLL |
| Available baud rate | 4800bps~921600bps(default 9600bps) |
| Channel | 72 |
| Sensitivity | Tracking: -167dbm Capture: -160dbm Cold start -148dbm |
| Cold start | Average 26seconds |
| Hot start | Average 1 seconds |
| Accuracy | Horizontal accuracy 2.0m CEP,
Velocity: 0.1 m/s
Timepulse signal: RMS 30 ns |
| 18Max Height | 18000 M |
| Max Speed | 500 m/s |
| Max Acceleration | ≦ 4G |
| Regeneration frequency | 1Hz -18 Hz |
| Positioning mode | A-GNSS |
| Communication type | TTL level |
| Antenna | Built-in ceramic antenna |
| Connector | |
| Connector type |
Molex connector |
| Physical property | |
| Type | 4 Pin |
| Size | 38mm*49mm*16mm (+/- 0.5mm) |
| Wire length | 3m (customizable) |
| Fixed mode | 3M adhesive or magnet (default 3M adhesive) |
| Power supply | |
| Voltage | 3V~5V |
| Power Consume |
35mA@3.3V |
| Oerating Environment | |
| Humidity range | 5% to 95% non-condensing |
| Working Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
