Product Details:
|
| Communication Type: | TTL Level | Agreement: | NMEA-0183 Compliant Protocol Or Custom Protocol |
|---|---|---|---|
| Model: | WT-2828-UN-TTL-M-3M | NMEA Messages: | RMC,VTG,GGA,GSA,GSV,GLL |
| Regeneration Frequency: | 1Hz -10 Hz | Antenna Type: | Built-in Versus External |
| Size: | 38mm*49mm*16mm (+/- 0.5mm) | Connector Type: | Molex Connector |
| Highlight: | UBLOX-M8030 GPS Receiver Antenna,CAR DVR GPS Receiver Antenna,TTL GPS Receiver Antenna |
||
The antenna positioning module integration is a revolutionary product that provides high-precision positioning and tracking capabilities.The product is ideal for a wide range of applications such as fleet management, vehicle tracking, asset tracking.
This product complies with NMEA-0183 standard and is compatible with various GPS devices. Users can also choose to use a custom protocol for their specific needs, making it a versatile solution for different applications.

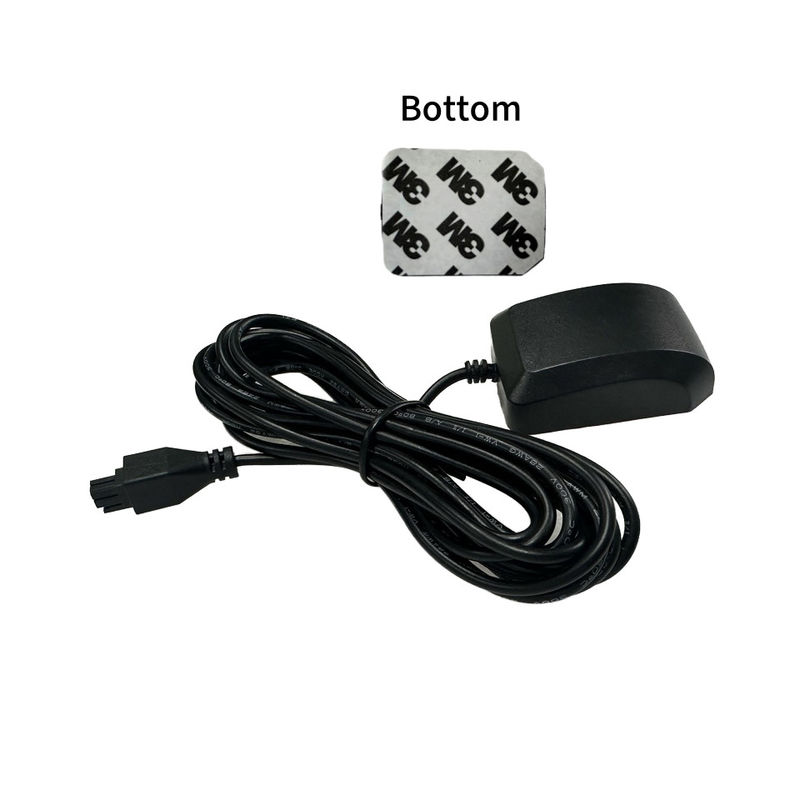

The Antenna Positioning Module Integrated comes with the option of 3M adhesive or magnet for fixed mode. The default option is 3M adhesive, which provides a strong and reliable hold on any surface. The magnet option offers greater flexibility and is ideal for temporary installations.
With a tracking sensitivity of -167dbm, capture sensitivity of -160dbm, and cold start sensitivity of -148dbm, this module can accurately and quickly acquire satellite signals in any environment. This makes it suitable for use in both urban and rural areas.
The Antenna Positioning Module Integrated comes with a standard wire length of 3m, which can be customized according to the user's requirements. This allows for greater flexibility in installation and placement of the module.
This module boasts a horizontal accuracy of 2.0m CEP (Circular Error Probable), making it one of the most accurate positioning solutions available. It also has a velocity accuracy of 0.1 M/s, ensuring precise tracking of moving objects. The timepulse signal has an RMS (Root Mean Square) of 30 Ns, providing accurate time synchronization.
The Antenna Positioning Module Integrated has a compact and lightweight design, making it easy to install and use. The antenna positioning is optimized for maximum signal reception, ensuring stable and accurate positioning at all times.
In conclusion, the Antenna Positioning Module Integrated is a highly advanced and versatile product that offers exceptional performance and accuracy. Whether for personal or commercial use, this module is the perfect solution for all your positioning and tracking needs.
| Technical Parameters | Values |
|---|---|
| Product Name | Antenna Positioning Module Integrated |
| Connector Type | Molex Connector |
| Agreement | NMEA-0183 Compliant Protocol Or Custom Protocol |
| Voltage | 3V~5V |
| Sensitivity | Tracking: -167dbm Capture: -160dbm Cold Start: -148dbm |
| Fixed Mode | 3M Adhesive Or Magnet (default 3M Adhesive) |
| Operating Temperature | -40°C To 85°C |
| Communication Type | TTL Level |
| Antenna Type | Built-in Versus External |
| Channel | 72 |
| Start-up Time | Cold Start Average: 26 seconds Hot Start Average: 1 second |
| Key Features | Auto GPS Antenna, Car GPS Antenna, GPS Active Antenna |
The Antenna Positioning Module Integrated is a high-quality GPS module designed and manufactured by OTW. This module, with the model number WT-2828-UN-TTL-M-3M, is made in China and has a minimum order quantity of 1 piece. It is priced at USD6.6$ per piece and comes in a standard paper box packaging. The delivery time for this product is 5-8 working days and it can be purchased using various payment methods such as T/T, AliPay, and PayPal.
Antenna positioning module integration is a multi-purpose product, widely used in various industries and scenarios. It is commonly used in applications that require accurate and reliable positioning, such as transportation, logistics, buses, and agriculture. In these activities, precise location is crucial.
With high sensitivity and fast response time, the GPS module can be used to fix and move objects, which is suitable for a variety of scenarios. You can improve signal reception and add features and performance.
