Advanced GPS Module for Base Station and Communication Positioning

Advanced GPS Module for Base Station and Communication Positioning
Advanced GPS Module for Base Station and Communication Positioning
Advanced GPS Module for Base Station and Communication Positioning Advanced GPS Module for Base Station and Communication Positioning Advanced GPS Module for Base Station and Communication Positioning Advanced GPS Module for Base Station and Communication Positioning

Large Image :  Advanced GPS Module for Base Station and Communication Positioning

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-11-RK
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: NA
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: More than tens of thousands of pieces
Contact Now

Advanced GPS Module for Base Station and Communication Positioning

Description
Model Number: WT-11-RK Application: Positioning, Surveying And Mapping, Etc
Type: GNSS Module Output Mode: UART+TTL+R232
Baud Rate: 4800bps-921600bps,Default115200bps NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL
Voltage: 1.8V To 3.3V Size: 9.7mm*10.1mm*2.4mm
Highlight:

Base Station GPS Module

,

Communication Positioning GPS Module

Product descriptions from the supplier

Overview

Advanced GPS Module for Base Station and Communication Positioning 0
Application:
● Base station, power, communication positioning field ● Surveying and mapping products such as area measurement and distance measurement ● Synchronize UTC time and timing areas ● Positioning and measurement in complex environments and high-speed motion scenarios ● Intelligent Internet of Things, intelligent driving, drones and other fields ● Shared bikes, wearable devices, etc

Advanced GPS Module for Base Station and Communication Positioning 1

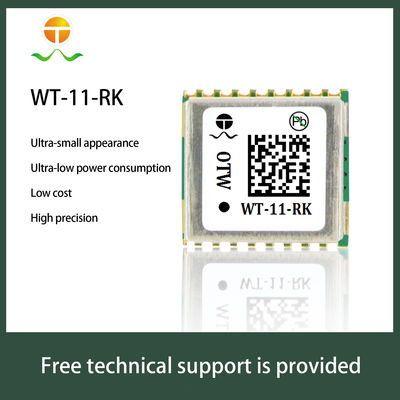

Features:
●1010 size & 18PIN LCC package, PIN 2 PIN compatible with industry mainstream modules(Minimum feature set) ●Support BDS B1I/B2a/B1C, GPS L1C/A/L5, GAL E1/E5a, GLONASS L1 four-system dual-frequency ●Built-in dual frequency RTK algorithm ● Ultra-high precision, can achieve centimeter-level positioning ● Low cost, low power consumption ● Fast positioning ● Ultra-small size, overall size :9.7x10.1x2.4mm

Advanced GPS Module for Base Station and Communication Positioning 2



Bottom view
Module pin allocation
Advanced GPS Module for Base Station and Communication Positioning 3
                                                      Module performance
Model WT-11-RK
Receiver type

BDS:B1I/B1C & B2a
GPS/QZSS:L1C/A & L5
GLONASS:L1
Galileo:E1,E5a
Arithmetic Integration RTK
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps(default 115200bps)
Channel 128
Sensitivity Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start Average 28seconds
Hot start Average 1 seconds
Accuracy Level 1cm+1ppm CEP50; Elevation 2cm+1ppm CEP50
18Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 0.25 Hz -10 Hz
Positioning mode A-GNSS,Double frequency RTK
Port
Port

UART/TTL/R232


Physical property
Type 18PIN LCC package

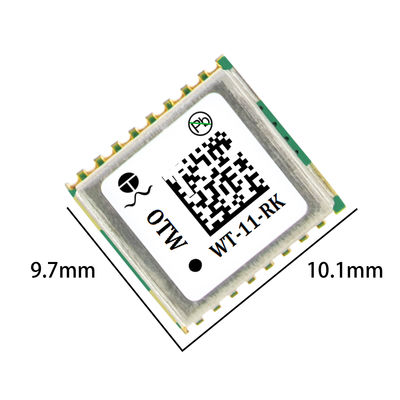

Size 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm)
Power supply
Voltage 1.8V~3.3V
Power Consume

Running mode: 100mW@1.8V, Standby mode: < 20μW
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
