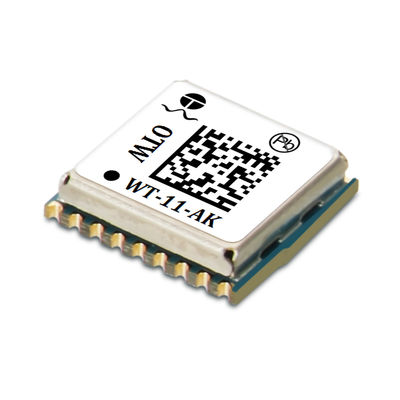

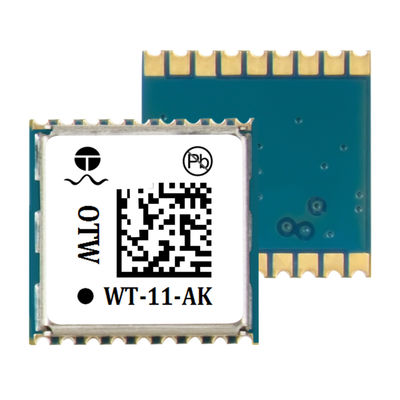

GPS Positioning Module With Wide Voltage -40\u2103 To 85\u2103 And Receiver BDS B1 B1I B1C

GPS Positioning Module With Wide Voltage -40\u2103 To 85\u2103 And Receiver BDS B1 B1I B1C
GPS Positioning Module With Wide Voltage -40\u2103 To 85\u2103 And Receiver BDS B1 B1I B1C
GPS Positioning Module With Wide Voltage -40\u2103 To 85\u2103 And Receiver BDS B1 B1I B1C GPS Positioning Module With Wide Voltage -40\u2103 To 85\u2103 And Receiver BDS B1 B1I B1C GPS Positioning Module With Wide Voltage -40\u2103 To 85\u2103 And Receiver BDS B1 B1I B1C

Large Image :  GPS Positioning Module With Wide Voltage -40\u2103 To 85\u2103 And Receiver BDS B1 B1I B1C

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-11-AK
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NA
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T, AliPay, PayPal
Supply Ability: 10000 pcs/day

GPS Positioning Module With Wide Voltage -40\u2103 To 85\u2103 And Receiver BDS B1 B1I B1C

Description
Storage Temperature: -40℃ To 85℃ Receiver Type: BDS:B1I+B1C GPS/QZSS:L1C/A GLONASS:L1
Regeneration: 1-10 Hz Positioning Mode: A-GNSS
Size: 10.1mm * 9.7mm * 2.5 Mm (+/- 0.5mm) Voltage: 3.6~5.5V
Max Acceleration: ≦ 4G Sensitivity: Tracking: -162dbm Capture: -160dbm Cold Start -148dbm
Highlight:

Wide Voltage GPS Positioning Module

,

BDS GPS Positioning Module

,

Receiver GPS Positioning Module

Product Description:

With a max acceleration of ≦ 4G and a max speed of 515 M/s, this module is capable of accurately determining and locating its position in real-time. The GPS module can be used in various applications, including navigation, tracking, and other location-based services.

The humidity range of 5% to 90% non-condensing ensures that this module can operate under varying humidity levels without any impact on its performance. The power consumption of this GPS module is also very low, consuming only 25mA@3.3V in running mode and 8uA (@3.3V) in standby mode.

The GPS module is suitable for use in a variety of applications, including automotive, marine, and aviation. The module is easy to integrate and can be quickly deployed, making it an ideal choice for developers and engineers looking for a reliable and high-performance locating module.

Overall, our GPS module is a reliable and high-performance locating module that can be used in a wide range of applications. Whether you need to track vehicles or monitor assets, this module is an excellent choice. With its exceptional accuracy, low power consumption, and robust design, you can be sure that our GPS module will deliver the results you need.



Features:

  • Product Name: GPS Module
  • Model number: WT-11-AK
  • Storage Temperature: -40℃ To 85℃
  • Receiver type: BDS:B1I+B1C GPS/QZSS:L1C/A GLONASS:L1
  • Working Temperature: -40℃ To 85℃
  • Port: UART/12C/SPI

This GPS Module is a Locater Module, Locating Module, and GPS Positioning Module, designed to work in extreme temperatures ranging from -40℃ to 85℃. It uses BDS:B1I+B1C GPS/QZSS:L1C/A GLONASS:L1 receiver type and can be connected using UART/12C/SPI port.



Technical Parameters:

Technical Parameter Value
Type Locating Module
Sensitivity Tracking: -162dbm
Capture: -160dbm
Cold Start -148dbm
Receiver type BDS:B1I+B1C GPS/QZSS:L1C/A GLONASS:L1
Max Acceleration ≦ 4G
Start-up time Cold Start:Average 29seconds
Hot Start: 2-3 Seconds On Average
Positioning mode A-GNSS
Working Temperature -40℃ To 85℃
Accuracy Level <2.5m CEP50
Humidity range 5% To 90% Non-condensing
Package type 18PIN LCC Package
Max Speed 515 M/s


Applications:

The OTW WT-11-AK GPS Module is a determining and locating module that is manufactured in China. It is a highly efficient and reliable module that is suitable for a wide range of application occasions and scenarios.

One of the most common application scenarios for this GPS module is in the field of navigation. The module can be used to track and locate vehicles, ships, and aircraft. It can be used in conjunction with other navigation systems to provide real-time information about the location, speed, and direction of travel of the vehicle.

Another major application scenario for the OTW WT-11-AK GPS Module is in the field of surveying and mapping. The module can be used to provide accurate location information that can be used to create maps and other geographical data. It can also be used in the construction industry to monitor the movement of heavy equipment and machinery.

The module can also be used in the field of logistics and transportation. It can be used to track the movement of goods and products, providing real-time information on their location and status. This can help to improve efficiency and reduce costs in the logistics process.

The OTW WT-11-AK GPS Module is also ideal for use in outdoor recreational activities such as hiking, camping, and hunting. It can provide accurate location information to help users navigate through unfamiliar terrain and find their way back to their starting point.

Other application scenarios for this GPS module include use in the field of agriculture, where it can be used to monitor the movement of crops and livestock, and in the field of security, where it can be used to track the movement of people and vehicles in high-security areas.

With a minimum order quantity of just 1 and a price of USD 2.8$ per piece, the OTW WT-11-AK GPS Module is an affordable and reliable solution for a wide range of application scenarios. It is supplied in a carton box and has a delivery time of 5-8 working days. Payment can be made via T/T, AliPay, or PayPal, and the module has a supply ability of 10000 pcs/day. The available baud rate for this GPS module is 4800bps~921600bps, with a default rate of 9600bps. The positioning mode is A-GNSS and the receiver type is BDS:B1I+B1C GPS/QZSS:L1C/A GLONASS:L1. The module can be connected via UART/12C/SPI port.
