Product Details:
|
| Humidity Range: | 5% To 95% Non-condensing | Sensitivity: | Tracking :-167 DBM Capture :-158 DBM Cold Start -148dBm Hot Start -157dBm |
|---|---|---|---|
| Storage Temperature: | -40℃ To 85℃ | Port: | UART/SPI/12C |
| Accuracy: | 2M | Voltage: | 1.65~3.6V |
| Regeneration: | 1-18 Hz | Max Acceleration: | ≦ 4G |
| Highlight: | Superior Sensitivity GPS Module,Wide Voltage Range GPS Module,2M Accuracy GPS Module |
||
Our products suit a variety of industries, including car navigation, traffic recording, drones, law enforcement cameras, HD cameras for surveying and mapping, handheld devices, smart wear, and smart agriculture.
Our product boasts several key features, including the ability to concurrently receive up to three GNSS (GPS, Galileo, GLONASS, BeiDou) signals. Additionally, our product has a minimum current consumption, allowing for extended use. Its excellent positioning accuracy makes it the ideal tool for urban canyons, while its security and integrity protection ensures the longevity of the product. The product also supports all satellite augmentation systems and has a built-in low noise amplifier.
This product is a Locating Module, Locating Module, Locater Module that provides accurate GPS positioning and navigation capabilities. Its receiver type supports GPS, Galileo, GLONASS, and BeiDou satellite systems. The start-up time is quick, with an average cold start of 26 seconds and an average hot start of 1 second. The module can withstand maximal acceleration of ≦ 4G and can reach a maximum height of 18000 M.
| Available Baud Rate | 4800bps~921600bps(default 9600bps) |
| Working Temperature | -40℃ To 85℃ |
| Regeneration | 1-18 Hz |

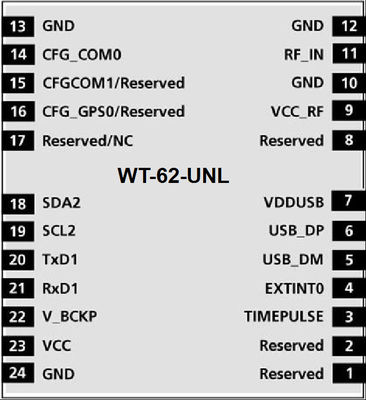

| Type | 24PIN LCC Package |
| Start-up time | The Average Cold Start Is 26 Seconds And The Average Hot Start Is 1 Second |
| Receiver type | GPS/QZSS :L1C/A Galileo:E1-B/C GLONASS:L1OF BeiDou:B1| |
| Agreement | NMEA-0183 Compliant Protocol Or Custom Protocol |

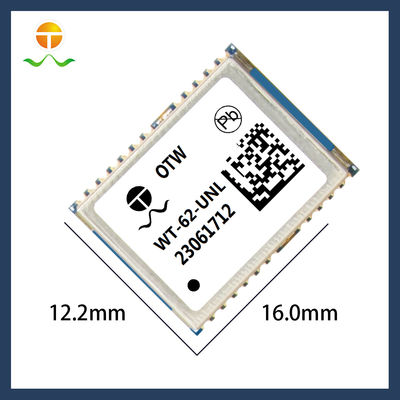

| Size | 16mm * 12.2mm * 2.4 Mm (+/- 0.5mm) |
| Port | UART/SPI/12C |
| Accuracy | 2M |
The size of the GPS module is 16mm * 12.2mm * 2.4 Mm (+/- 0.5mm) with a 24PIN LCC package. It operates on a voltage of 1.65~3.6V and has a working temperature ranging from -40℃ to 85℃. The humidity range that it can operate in is 5% to 95% non-condensing.
The product application occasions and scenarios for the GPS module are diverse. It can be used in vehicle tracking, personal tracking, security systems, navigation devices, asset tracking, and many others. This product is suitable for various applications that require location tracking, including fleet management, logistics, and transportation. It can also be used in hiking, camping, and other outdoor activities where location tracking is necessary.

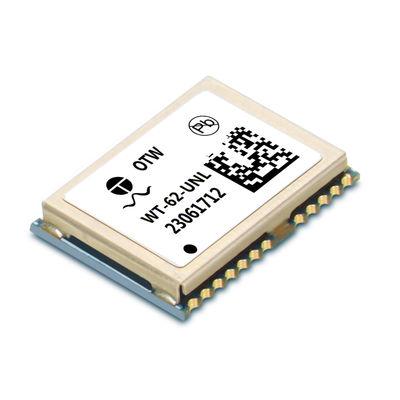

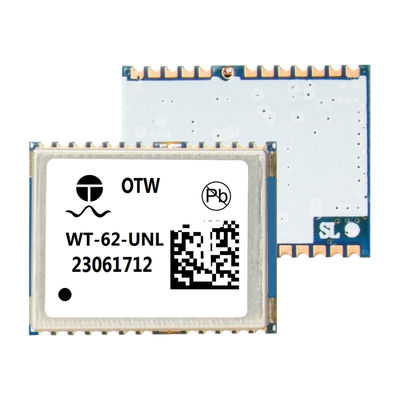

The OTW WT-62-UNL GPS module is easy to use and can be integrated into any device that requires location tracking. It is a reliable and accurate GPS module that can provide real-time location tracking information. With its small size and low power consumption, it is an ideal choice for portable devices that require location tracking.
