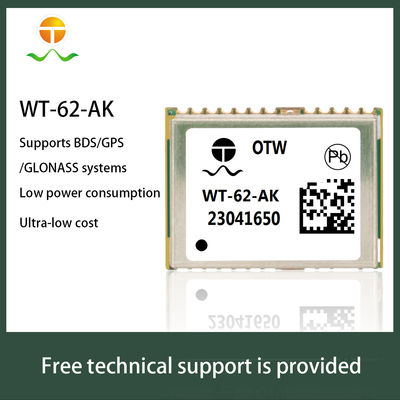

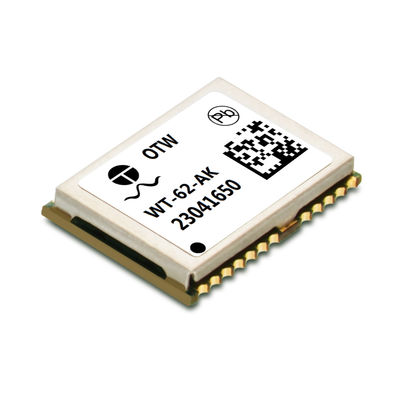

Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made

Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made
Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made
Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made

Large Image :  Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-62-AK
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: NA
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: Above US$100 Million
Contact Now

Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made

Description
Model Number: WT-62-AK Type: GNSS Module
Country Of Origin: CHINA Output Mode: UART+TTL+R232
NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL Voltage: 1.8V To 3.6V
Power Consumption: 23 MA , @3.3V Size: 12.2mm*16mm*2.4mm
Highlight:

3.3V power consumption gps module

,

Fast positioning gps module

,

Small size gps module

Product descriptions from the supplier

Overview

Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made 0
Application:
● Vehicle and ship positioning and navigation
● Time Service
● Wearable devices
● Mobile phones, tablets and other portable devices
Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made 1
Features:
● Support BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning.
● With antenna detection circuit and short circuit protection
● Low power consumption, high sensitivity
Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made 2

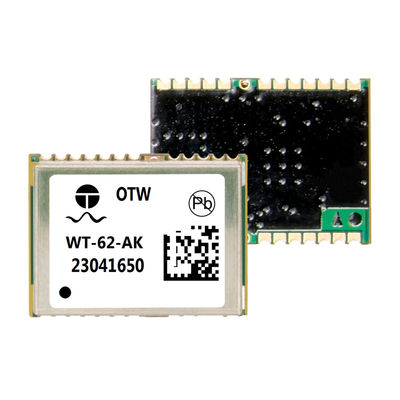

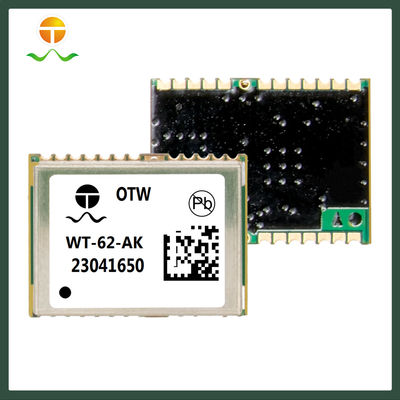

Bottom view
Module pin allocation
Fast Positioning Small Size Gps Module With Dual Gps Signal Reception 3.3V Power Consumption Made 3
                                                      Module performance
Model WT-62-AK
Receiver type

BDS:B1I+B1C
GPS/QZSS/SBAS:L1C/A
GALILEO:E1
GLONASS:L1
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps(default 9600bps)
Channel 56
Sensitivity Tracking: -162dbm    Capture: -160dbm    Cold start -148dbm
Cold start Average 29seconds
Hot start Average 1 seconds
Accuracy Horizontal Position : average, SBAS < 2.5m
18Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -10 Hz
Positioning mode A-GNSS
Port
Port

2 URAT
1 I2C
2 SPI


Physical property
Type 24 pin stamp holes

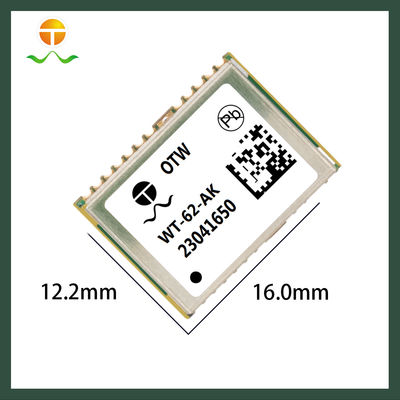

Size 16.0mm*12.2mm*2.4mm(+/- 0.5mm)
Power supply
Voltage 1.8V~3.6V
Power Consume

Maximum performance: Capture :23mA, tracking (power saving mode /1HZ) : 5mA
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃

Tag:

GPS Module,

GPS GNSS Module,

gps tracker module
